Mills CNC launches SYNERGi T Series compact automation cells for high-mix production

The interesting design decision is the vertical lift. A 20-drawer VLS lets the cell carry enough work-in-progress to run an entire night shift on a single machine, in roughly the same footprint that a conventional automation cell uses to hold three or four parts. That matters in the UK and Ireland where shop floor space is expensive and a lot of the relevant customer base — subcontract machining shops doing varied work for aerospace, oil & gas, medical, defence — don't have the room for a sprawling dedicated system.

The honest question is whether SYNERGi V6's touchscreen-based setup is actually fast enough for the high-mix, low-volume case Mills is targeting. Every cell-control vendor promises "set-up in minutes"; few deliver when the part family changes every shift. Mills' track record with existing SYNERGi customers suggests the software is mature enough to handle real production — but the T Series is new hardware and new cell geometry, so the early customer experience will be the real test.

If you're running a subcontract shop with one or two CNC mills or lathes and you're paying shift premiums to keep them cutting overnight, the T Series is worth a look. Stand visitors at MACH 2026 should be able to see a T20 in operation; Mills typically has engineering staff on hand who can talk through actual deployment rather than just brochure claims.

---

Mills CNC has launched the SYNERGi T Series, a new range of compact automation cells built around vertical lift storage and a 6-axis robot. Three models — the T5, T10 and T20 — are designed to convert a single machine tool into a 24/7 lights-out cell aimed squarely at high-mix, low-volume component manufacturers.

Each T Series cell pairs an industrial 6-axis robot with a servo-driven Vertical Lift System (VLS). The VLS uses two-way bi-directional drawers stacked 5, 10 or 20 high depending on the model. Raw billets and finished parts sit on grid-plated trays inside each drawer; the cell picks blanks from one side, machines them, and returns finished parts to the operator side without crossing the robot's working envelope.

The robot itself varies by model. Mills hasn't quoted specific payloads yet, but says the 6-axis arm can be configured with a range of end-of-arm tooling, pneumatic and electronic grippers depending on the workpiece. Cells are guarded with a light curtain, and loading is via a waist-height transfer hatch that separates operator and robot zones — so an operator can replenish blanks or unload parts without entering the cell or interrupting the cycle.

SYNERGi software V6 is the orchestrator. It runs on a 17-inch touchscreen HMI and handles setup, scheduling, and runtime monitoring, with 3D visualisation for production planning. Mills says set-ups can be completed in minutes with minimal training; the software also handles remote diagnostics and alerts the operator when a cycle completes or faults. Existing Mills CNC customers running SYNERGi cells should already be familiar with the interface — this is the same software stack that runs the larger Mills automation systems.

Positioning-wise, T Series sits in the space typically occupied by cells from cellro, easymotion, jig-grinding-and-automation shops using their own custom robotics, and the smaller end of the Heckert / Starrag flexible-manufacturing range. Where T Series differs is the VLS: most competing cells use rack-and-shelf storage or rotary tables, both of which take more floor space per part than vertical stacking. A T20 holds twenty drawers in roughly the footprint of a single CNC pallet — meaningful for UK and Ireland shops with tight floorspace who want unattended production on a single machine.

Heath Redman, Mills CNC's Chief Technical Officer, framed the launch around the high-mix low-volume problem: components that change every batch don't lend themselves to dedicated transfer lines, but a single operator can't economically tend a CNC that's running unattended for long stretches. A T Series cell gives those shops a way to add a second or third shift without adding headcount, and to keep the machine cutting overnight when lights-out is cheaper than paying a shift premium.

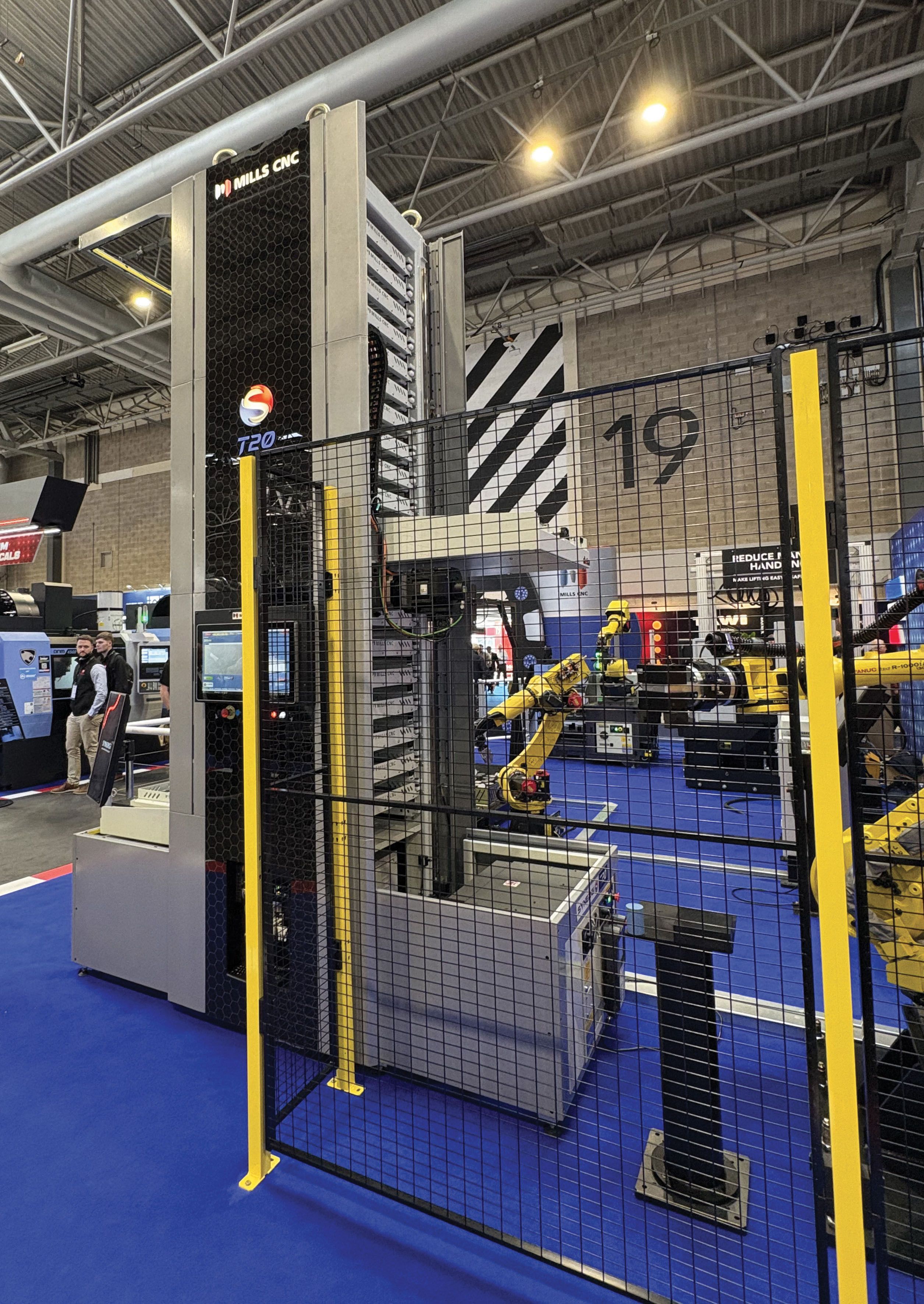

The T Series makes its public debut on the Mills CNC stand at MACH 2026, with the T20 on display alongside the company's existing CNC line-up. UK and Ireland deliveries are open now.
